Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube
Product Introduction:
This is a high-performance production engine tailored to enhance the welding capacity of galvanized pipes. Its core advantage lies in the use of dual guns and synchronous welding. By using two customized welding heads that have undergone precise calculations, high-quality spot welding of two key positions of the workpiece can be completed simultaneously in a single operation cycle, doubling the efficiency compared to traditional single head equipment. The sturdy gantry frame and customized electrode fixture ensure that the welding point position maintains extremely high repeatability and consistency even under long-term high load operation. It optimizes welding parameters specifically for galvanized materials, effectively overcoming the difficulties caused by low zinc layer resistivity and generating internally strong and aesthetically pleasing weld nuggets. The operator only needs to complete simple loading and unloading, and this steel giant can continuously output stable and reliable products for you with tireless and precise rhythm. It is an indispensable capacity multiplier on large-scale production lines.
Features:
1. The overall structure of the machine adopts a unique tree style, and the body is designed for impact resistance, earthquake resistance, and high rigidity. Through precise mechanical processing, it meets the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use.
2. The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points.
3. Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low damping sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed.
4. Capacitive charging and discharging have fast speed, short welding time, and high efficiency.
Technical Parameters:
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |

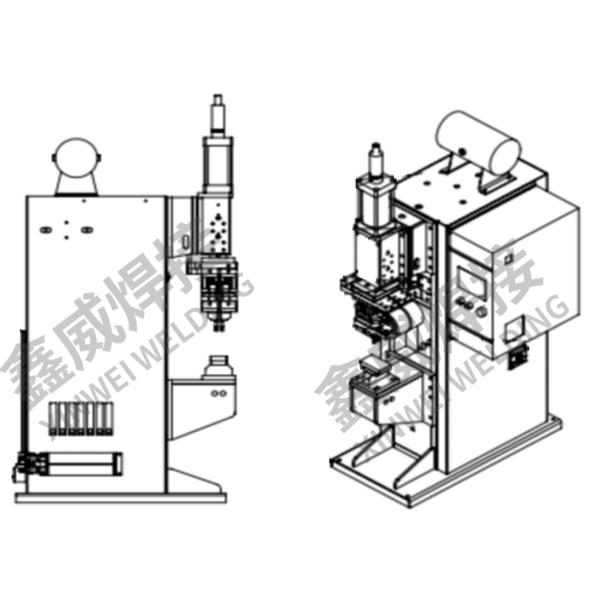

General Structures:
Detailed Images:

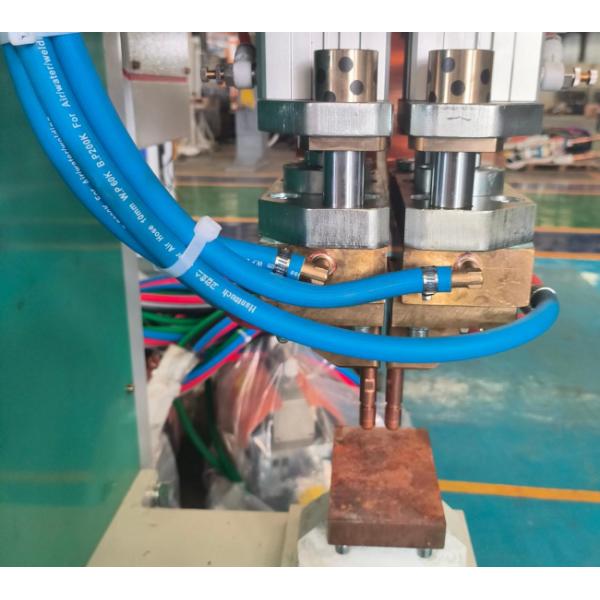

The Upper Electrode: After the equipment is started, it automatically loads, welds, and unloads, achieving fully automated unmanned operation and greatly improving efficiency. Customized 2 welding heads that can be welded synchronously to improve work efficiency.
The Pressure Component: The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

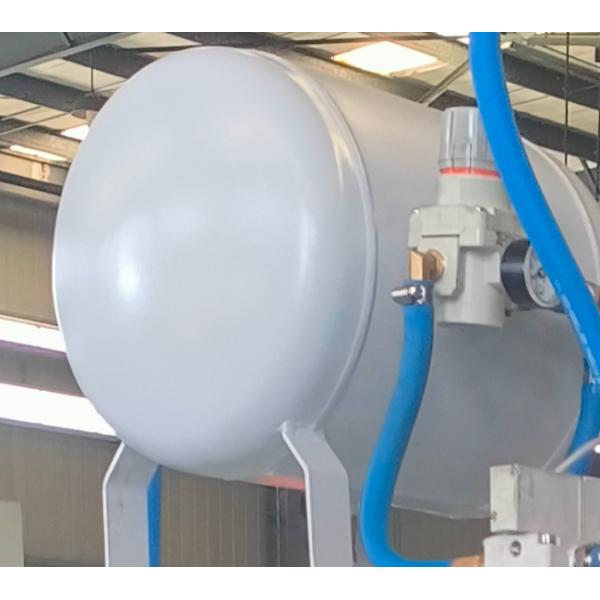

Gas Storage Tank: The spare dedicated gas storage tank for welding machines is beneficial in reducing welding pressure fluctuations and ensuring stable welding force.
Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
Scene Images:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
